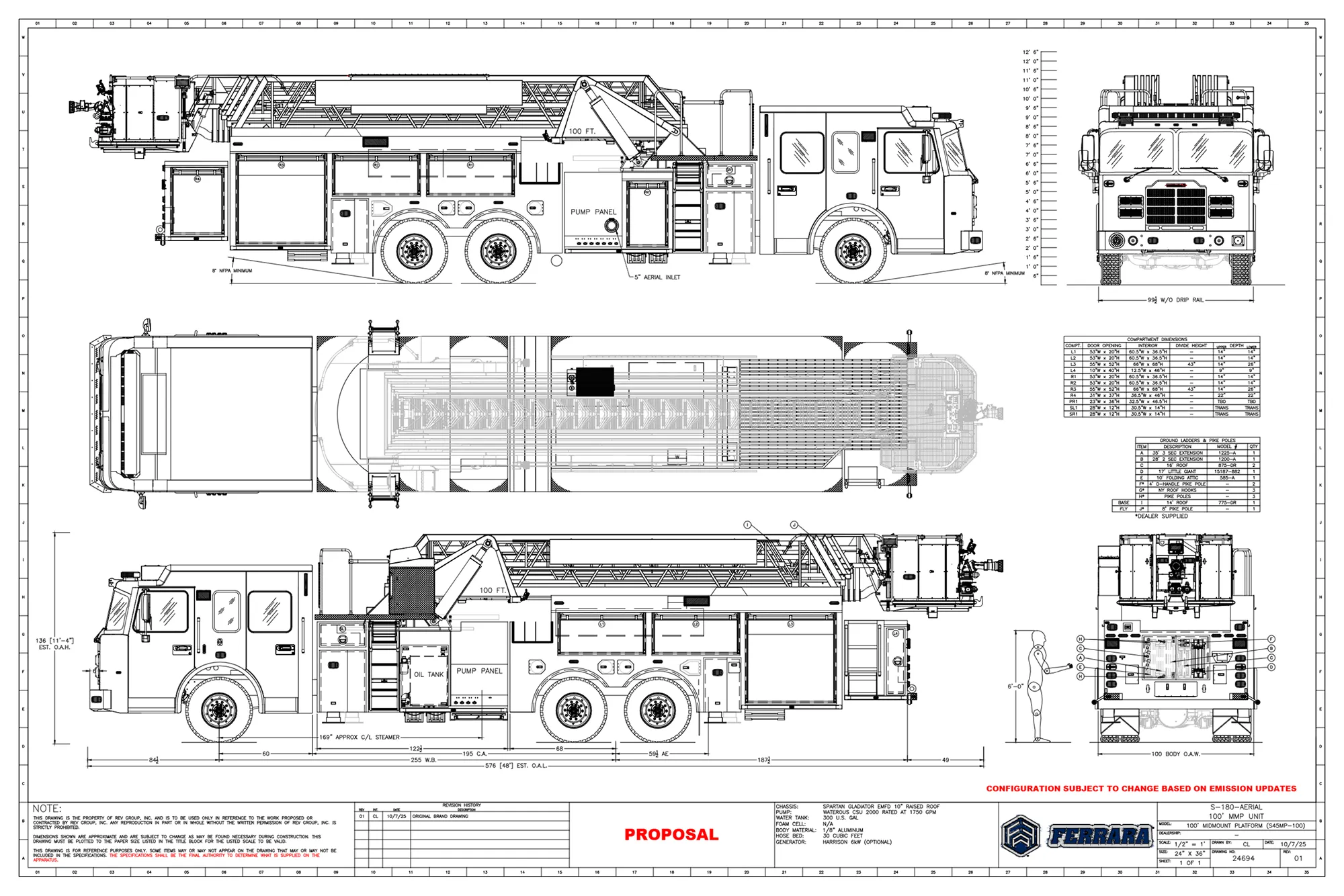

Truck Number:
- #DEV- 000419
Chassis:
- Spartan Gladiator EMFD 10’’ RR
- Cummins X15 605HP with Allison 4000 EVS Transmission
- 86,000 lb GVWR
Body:
- High Strength Aluminum Body
- 300 USG water tank
- 1000 lb Tip Load Dry / 500 lb wet
- 100’ Vertical Reach, 99’ Horizontal Reach
- SCBA storage in wheel well
- Fout H-Style outriggers Behind Cab and Behind Rear Axle with 18’ Jack Spread
- 11’4’’ Overall Height
- 136’ Ladder Storage
- 30 Cubic Feet Hose Bed Volume
Aerial:
- 100’ Vertical Reach, 99’ Horizontal Reach
- 72 ° Max Elevation, -12 ° Min Elevation
- 11’-4” (169”) Overall Height
- 1000 lb Tip Load Dry/ 500lb Wet
Highlights:
- Whelen scene and emergency lighting
- ROM roll-up compartment doors
- Waterous CSU 2000 GPM pump
